Phono , dây nguồn ...

Tên mặt hàng:
Tình trạng, mô tả:

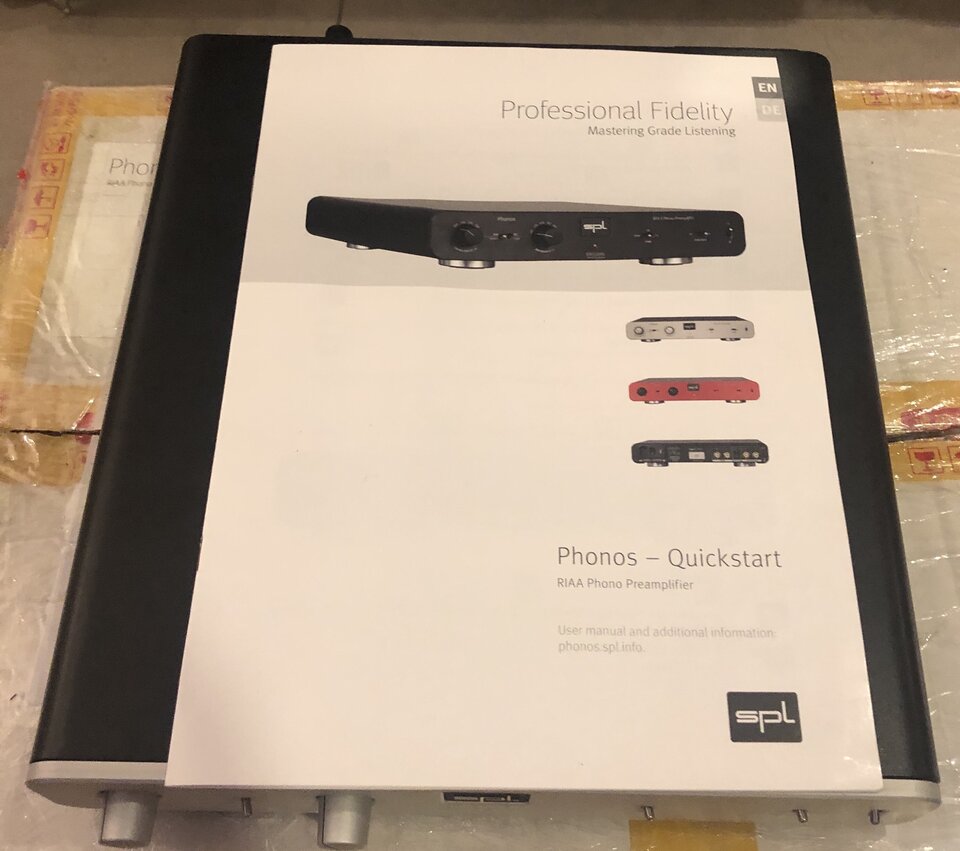

Dư dùng em bán phono SPL Phonos silver. Tình trạng full box, sách, dây nguồn. Bề ngoài xước xát ko đáng kể . Con này đã quá nổi tiếng ngon rẻ trong tầm giá. Đã được các phòng thu danh tiếng lựa chọn. Đủ lựa chọn mm, mc: đủ các mức trở kháng và dung kháng kim thoải mái lựa chọn.Chơi cả kim MC và MM, tất cả trở kháng và dung kháng đều chỉnh bằng nút trên mặt máy. Thiết kế sang trọng, vật liệu cao cấp, vỏ dày chống nhiễu, biến áp nguồn xuyến hiệu con nhím( nếu mình ko nhầm), cọc rca mạ vàng ...
Tiếng nét, không gian rộng, tĩnh,, độ động đặc biệt cao và chi tiết...
MC 100, 220, 470, 2.2k, 4.7k, and 10kOhm
MM Off, 150 pF, 220 pF and 330 pF Điện áp có thể lựa chọn các mức từ 110 đến 230v bằng công tắc thay đổi cầu chọn.
Đặc biệt gain đến + 70db ngang với mức tín hiệu của các dac output analog đời mới. Nên độ động tuyệt vời nhờ công nghệ VOLTAiR technology 120v rail độc đáo đã được review rất nhiều.
Đại lý đang bán ở vn 45tr. Mình đã so với phono tầm 5000 usd thấy ko kém nhiều, nếu ko nói có điểm hơn điểm kém theo khẩu vị người nghe. Bác nào thích test có thể qua nhà sẵn đồ so sánh với einstein the turntable choice : 5000$
Vài thông tin về máy trên net:
The SPL Phonos is a preamplifier for record players using either moving magnet (MM) or moving coil (MC) cartridges. The equalization curve is according to RIAA and suitable for all vinyl records since 1954. The RIAA filter is designed after Douglas Self.

With up to 70 dB gain for MC cartridges and 51 dB gain for MM cartridges Phonos belongs to the most powerful phono preamplifiers.

• 120 V rail phono preamplifier for record players
• RIAA equalization (after Douglas Self)
• Suitable for MM (Moving Magnet) and MC (Moving Coil) cartridges
• Max. preamplification: 51dB (MM); 70dB (MC)
• Capacitances for MM: Off, 150 pF, 220 pF and 330 pF
• Impedances for MC: 100, 220, 470; 2k2, 4k7 and 10 kohms
• Styroflex condensers used throughout the RIAA equalizer
• Switchable Gain: Normal, -10 dB, +4 dB
• Gold-plated RCA in- and outputs
• Audio ground connection for record player
• Switchable rumble filter (Subsonic)
• Linear power supply with toroidal transformer
• Made in Germany

The technical basis of all Professional Fidelity units is the proprietory 120 V Rail Technology, which is also called VOLTAiR technology. The name makes reference to the unequalled high voltage of 120 V (+/-60 V DC) and the huge dynamic range of over 140 dB that goes with it. More information on the 120 V Rail Technology can be found here. The construction of the RIAA equalizer follows a design made by Douglas Self. In this design larger single capacities are exchanged against smaller multiple capacities. RIAA equalization is a specification for the recording and playback of phonograph records, established by the Recording Industry Association of America (RIAA). The RIAA equalization curve was intended to operate as a de facto global industry standard for records since 1954. The purposes of the RIAA equalization, which is a form of pre-emphasis on recording and de-emphasis on playback, are to permit greater recording times by decreasing the mean width of each groove, to improve sound quality, and to reduce the groove damage that would otherwise arise during playback. A recording is made with the low frequencies reduced and the high frequencies boosted, and on playback the opposite occurs. The net result is a flat frequency response, but with attenuation of high frequency noise such as hiss and clicks that arise from the recording medium.

MM AND MC
There are two primary methods a modern cartridge uses to generate current. These are moving magnet (MM) and moving coil (MC) configurations.

Moving Magnet

Moving magnet cartridges tend to produce lush, mellow sound. By moving a magnet within copper coils a small voltage is created. MM cartridges sport very high inductance and impedance. In the latter, cable capacitance can negatively affect the flatness of frequency response and linearity of phase response. Phonos offers a selection of four capacities to fine tune the flatness of the frequency response or to willingly increase high frequencies in playback. The capacities are 150pF, 220pF and 330pF. In the OFF position the capacitance is determined by the cable capacitance.

Moving Coil

The MC design is again a tiny electromagnetic generator, but (unlike an MM design) with the magnet and coils reversed. The resulting signal is only a few hundred microvolts, and thus more easily swamped by noise, induced hum, etc. Thus it is more challenging to design a preamplifier with the extremely low noise inputs needed for moving-coil cartridge. Phonos provides a 20dB higher preampfification for the MC stage compared to the MM stage. MC cartridges offer very low inductance and impedance, which means that the effects of capacitance (in the cable that goes from the cartridge to the preamp) are negligible. The impedance of cartridge can be set in six values: 100, 220, 470, 2.2k, 4.7k, and 10kOhm. If in doubt which impedance matches the cartridge’s impedance you can empirically determine the value for the flattest frequency response.

SUBSONIC FILTER
Rumble from the playback turntable's drive mechanism is amplified by the low frequency boost that occurs on playback. The Phonos offers a switchable Subsonic filter to eliminate the rumble.

GAIN

• The preamplification is switchable and offers three values for MM and MC.
• The Normal gain is +47dB (MM) and +66 (MC).
• In the -10dB position the Phonos produces enough output level for standard consumer electronics products operating on -10dBV.
• In the +4dB position the output is equally loud as modern DA converters at 0dBfs = +15dBu.

PROFESSIONAL FIDELITY • PRO-FI-SERIES
Phonos is part of the Pro-Fi series of products. Pro-Fi stands for Professional Fidelity and it expresses that these products have their roots in professional studio technology being optimized for high-fidelity music playback. SPL's background comes from professional studio technology, where inner values and audio performance count the most. Mastering studios give your records and CDs the final tough – with SPL 120 V technology. And because the Phonos is built with the same technology it belongs to best phono preamplifiers on the planet. With its extraordinary specifications and enormous headroom Phonos plays back audio in the most relaxed and uncompromized fashion.
Giá bán:
Khu vực:hcm
Điện thoại:0839666679
Giao hàng:hcm, gọi ship dùm người mua

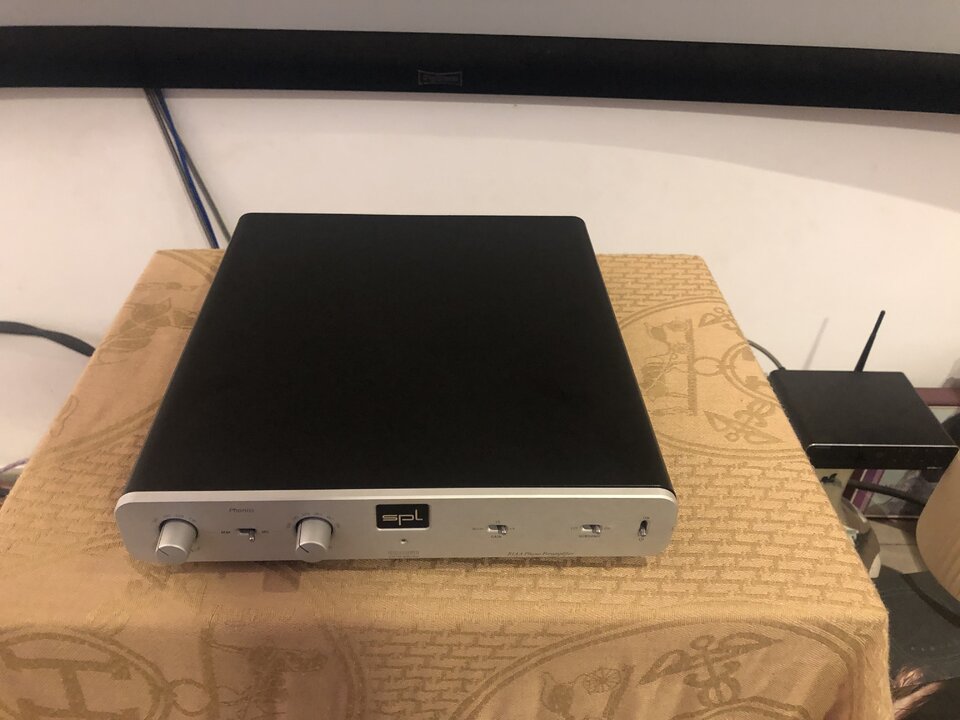

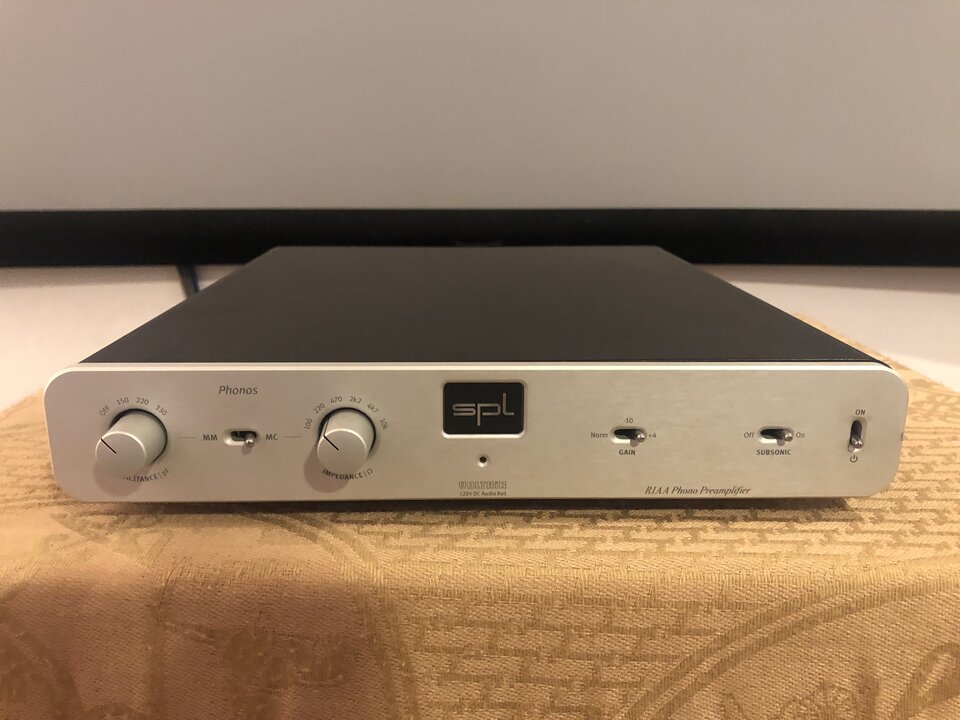

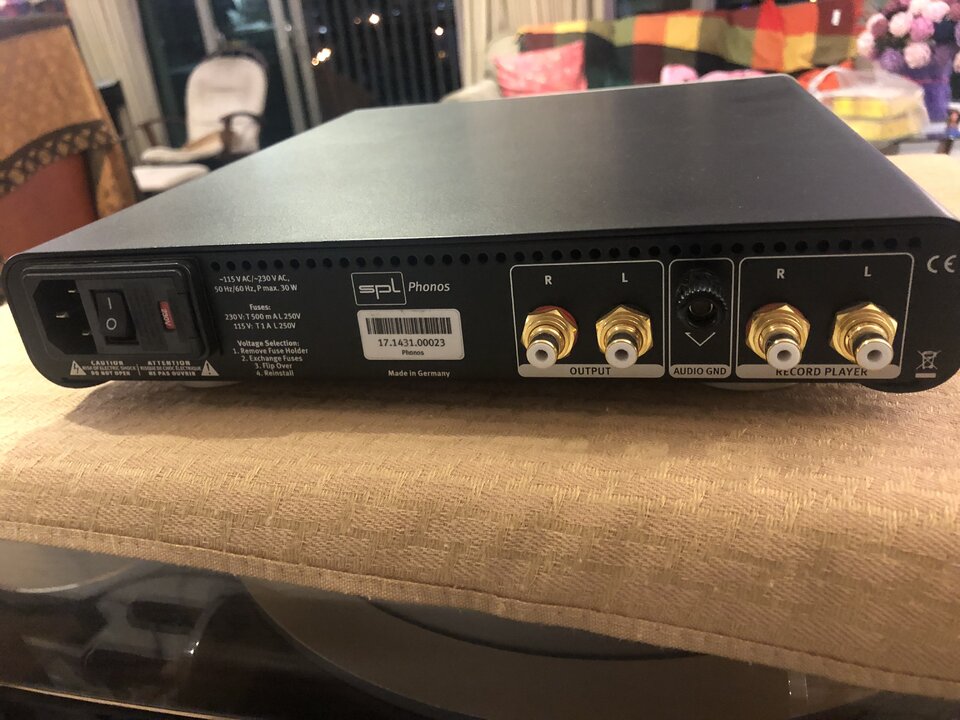

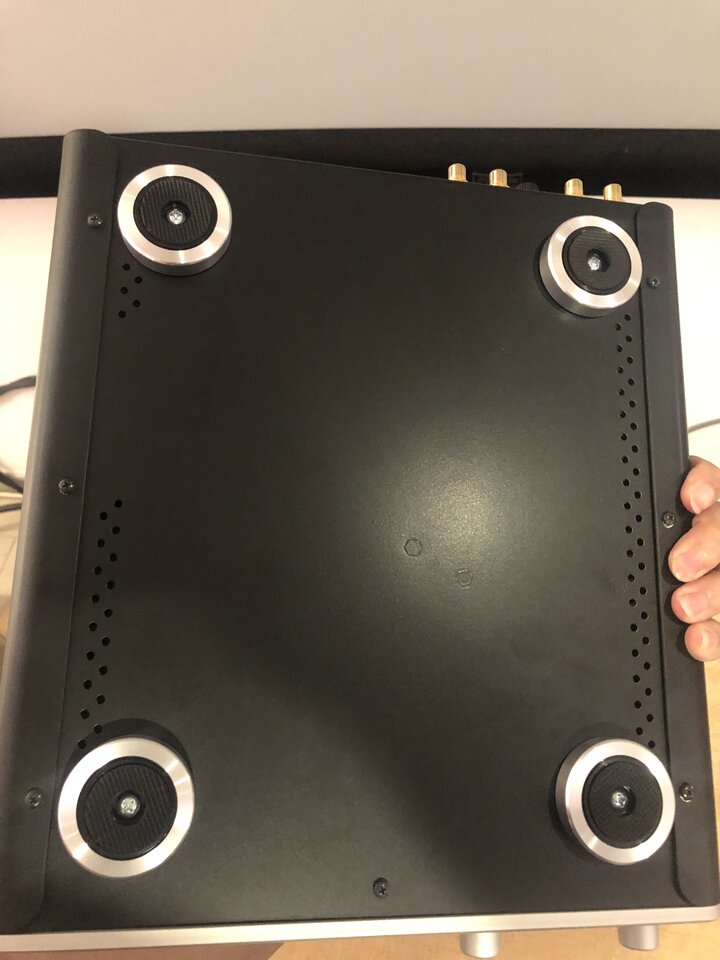

Ảnh chụp thực tế

Thông tin thêm:

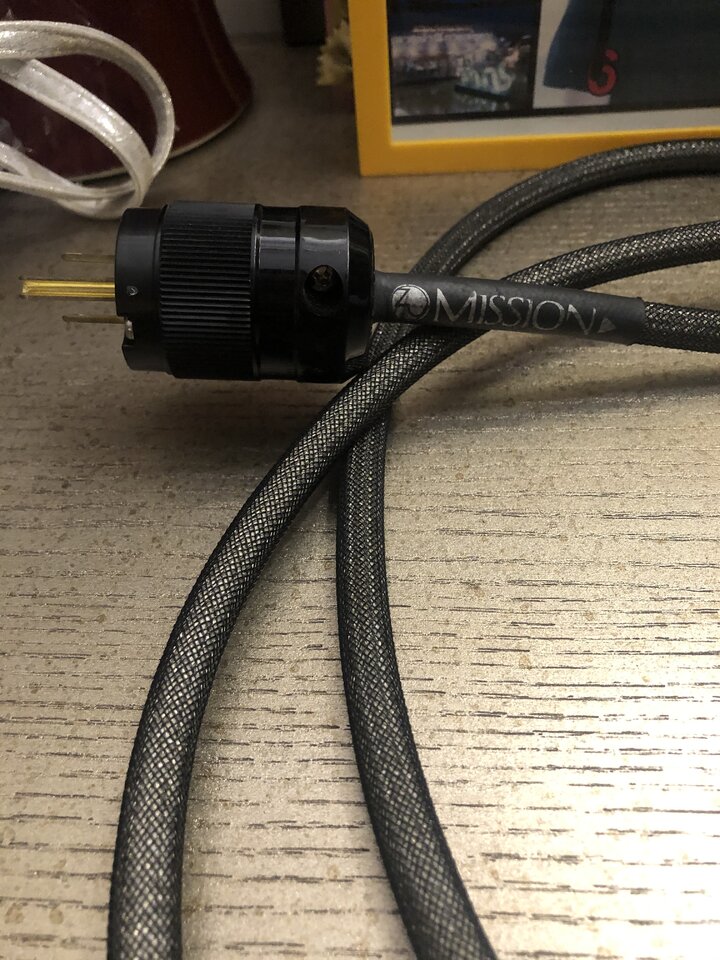

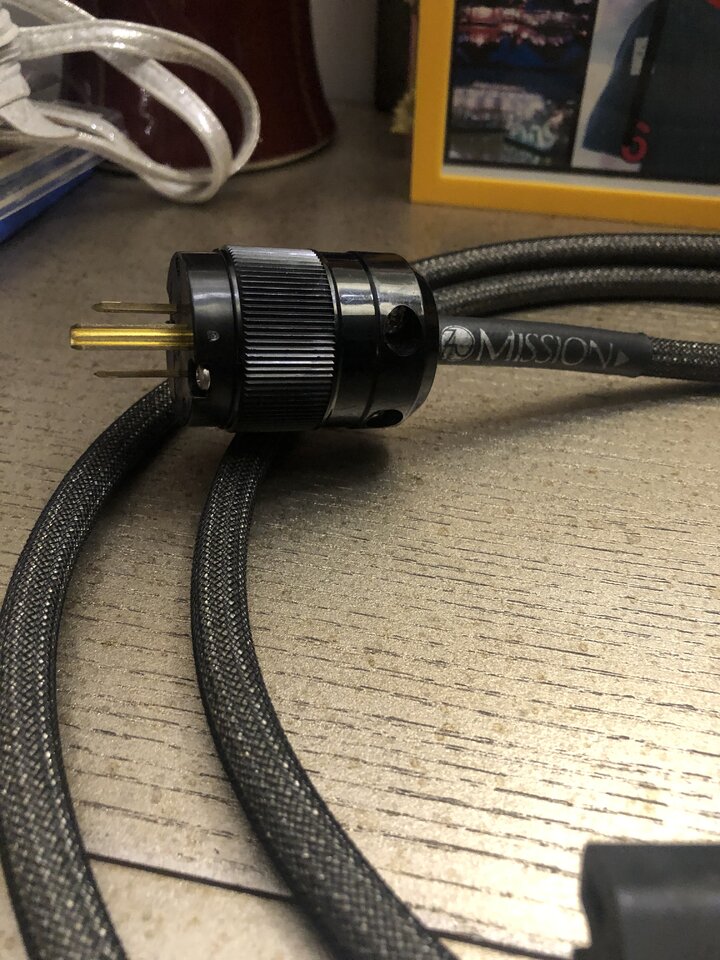

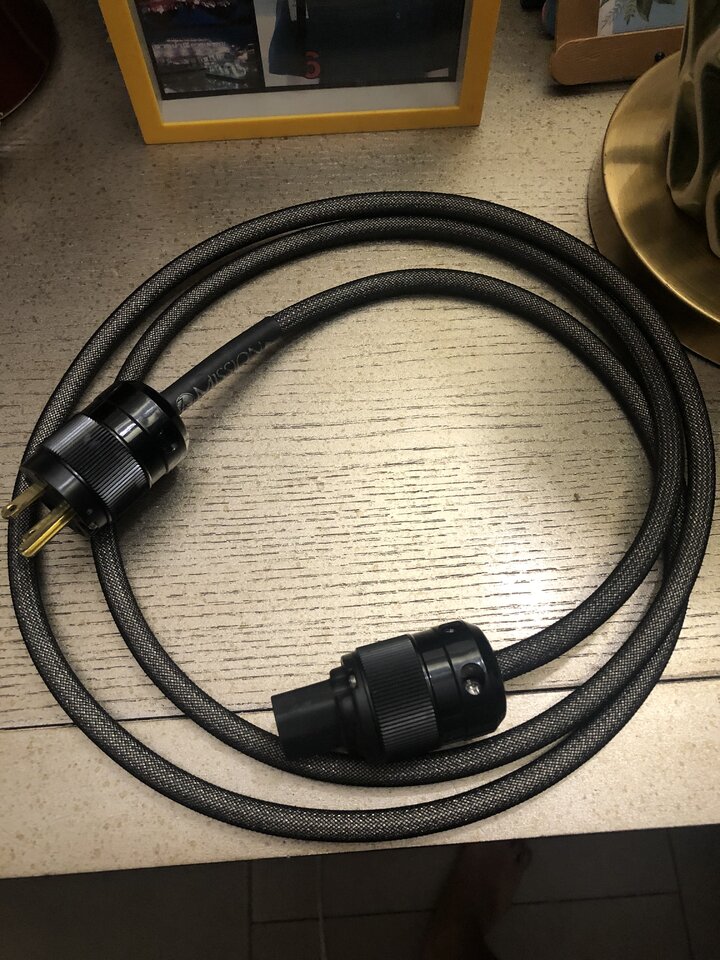

Em rao thêm dây nguồn Zu audio Mission
Tiếng rất tốt trong tầm dưới 5tr. Em đã so với blueheaven, theo cảm nhận hay hơn 1 level. Tiếng tĩnh, nét các dải, âm trường rộng , tốc độ và độ động rất khá. Và cũng có sẵn nordost vishu và synergistic reseach master couple để các bác test tại chỗ luôn. Dây 2m , cực mới vì cắm rút 1,2 lần. Giá :3tr



Bác cho em xin giá SPL nhé
