Bán máy LCR-meter Leader LCR-745

• Sold for 9.000.000 VND
• Gửi tin nhắn tới người đăng bài

Tên mặt hàng:Used
Tình trạng, mô tả:used
Giá bán:9000000
Khu vực:TPHCM
Điện thoại:0918072477
Giao hàng:TQ
Ảnh chụp thực tế

Thông tin thêm:

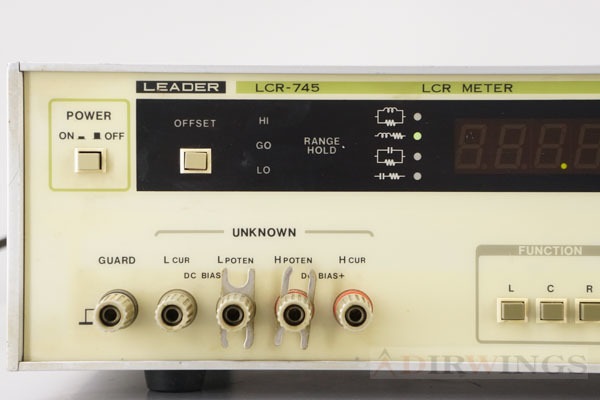

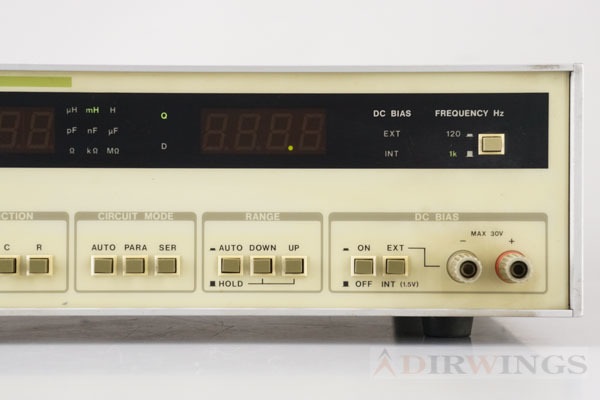

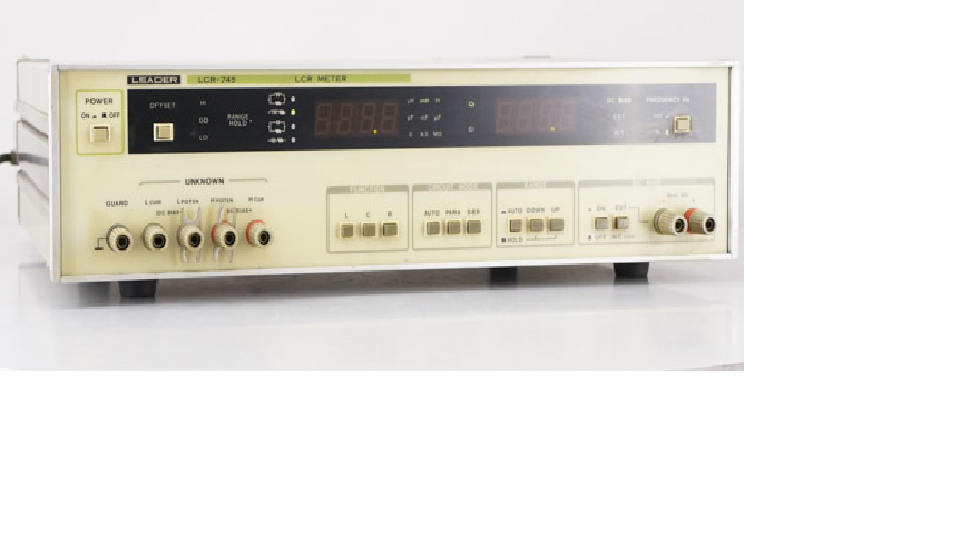

Leader LCR-745 199.9 H, 1999 uF, 19.99 Mohm, Digital LCR Meter

Feature:
No. of digits: 3.5digits
Impedance Measurement: 1.999ohm
Capacitance Measurement: 199.9pF
LCR-745(G): Digital LCR Meter (Optional GPIB)

- Measures L, C, R and D or Q

- Automatic Ranging and Circuit Mode Selection

- Offset Function Cancels Fixture L, C and R

- +1.5V Internal DC Bias

- 0 to +30V Extrenal DC Bias

- 2, 4 or 5 Terminal Measurements

- 120 Hz or 1 kHz Test Frequencies

- 0.35% Basic Accuracy

- Full Listener/Talker GPIB (Optional)


The LCR-745 is a CPU controlled digital LCR meter with automatic and manual ranging. Direct resistance, capacitance and inductance measurements of components in equivalent sereis and parallel modes can be ade with Quality (Q) and Dissipation (D) displayed simultaneously with inductance and capacitance. The units wide automatic measurement range greatly reduces the time associated with performing these component measurements compared with a manual LCR bridge. This makes the LCR-745 an ideal instrument for incoming inspection or final production test of components where e Auto / manual ranging
Meas Mode: Auto/Series/Paralle
Dissipation Factor
Quality Factor
Circuit Mode Selection
2, 4 or 5 Terminal Measurement
0 to +30V Ext DC Bias
0.2 - 2s Measurement Time
1kHz & 120Hz Test Frequency
Deviation Measurement Indicate
