Bán nguồn hdplex 400w dc-atx

• Buy now for 0 VND
• Gửi tin nhắn tới người đăng bài

Tên mặt hàng: hdplex 400w dc-atx
Tình trạng, mô tả:
Fullbox đủ phụ kiện, hoạt đông tốt
Thoongtin:
The HDPLEX 400W HiFi DC-ATX is a fanless, high-efficiency DC-DC converter designed for Small Form Factor (SFF) PCs, providing 400W nominal power (500W peak) with a 16V-24V wide range input. It supports high-wattage GPU applications via dual 6+2PIN PCIe outputs and is often paired with HDPLEX internal AC-DC adapters for a full system solution.
Key Technical Specifications

• Power Output: 400W Nominal / 500W Peak
• Input Voltage: 16V - 24V DC Wide Range
• Efficiency: >94% DC-DC Efficiency
• Dimensions: 160mm (L) x 51.5mm (W) x 30mm (H)
• Cooling: Fanless (Passive) with Dual Heatsinks for MOSFET and PCB

• PCB Design: 6-layer 2oz copper PCB

Output Rails & Current

• +12V: 50A (Max), 35A (Full Load)
• +5V: 10A (Max), 8A (Full Load)
• +3.3V: 10A (Max), 8A (Full Load)
• +5VSB: 2A (Max), 1.5A (Full Load)
• -12V: 0.5A (Max)

Giá bán:
400w: 2.1tr
Khu vực:HN, TQ
Điện thoại:0939 tám bảy 88 tám chín
Giao hàng:

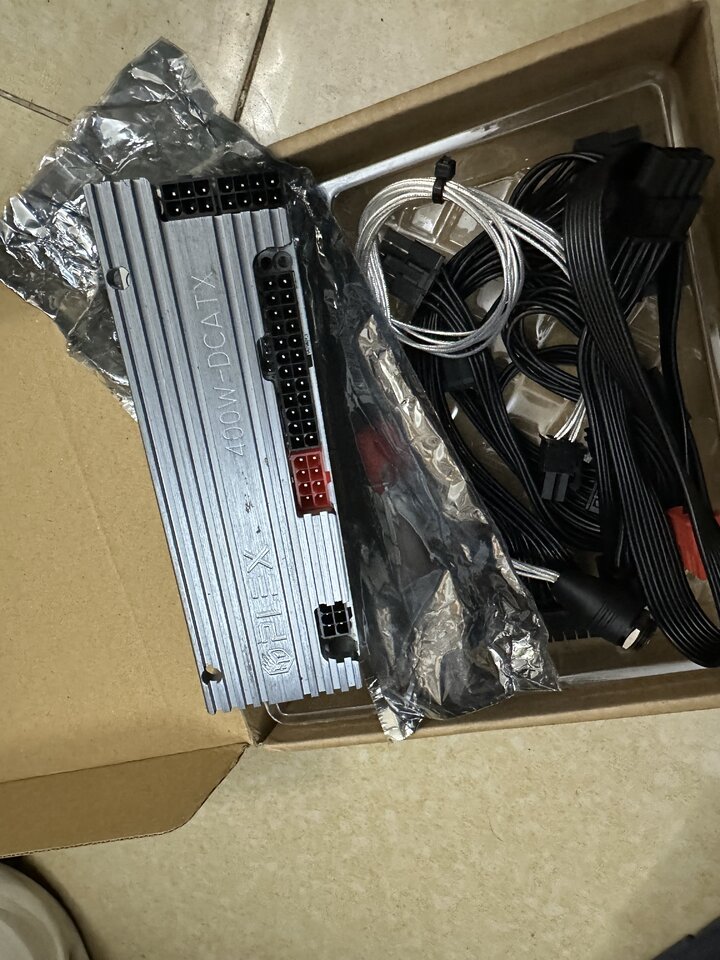

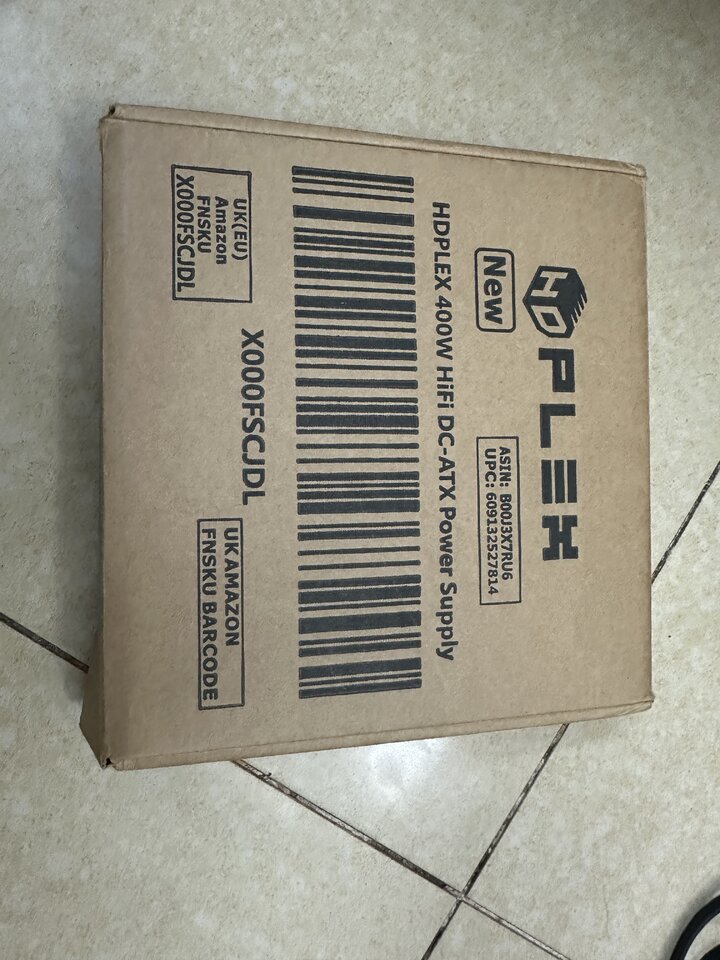

Ảnh chụp thực tế
