Dự án mới - Cùng làm OTL - OPT Push-Pull Amp

Chào các Bác!

Đã làm nhiều dự án nhưng vẫn chưa có cái Ampli đèn nào để nghe. Rứa mới kẹt chứ ! Hơn nữa, cũng có nhiều Bác xúi Em làm cái Ampli cho đủ bộ.

Suy đi nghĩ lại, Cuối cùng Em quyết tâm làm cái Push-Pull Ampli.

Dự định thiết kế dạng mở để có thể dùng nhiều loại Bóng khác nhau và gồm các module sau:

1 - Phần Driver: dùng các bóng thông dụng như 12AX7, 12AU7, 6SL7, 6SN7 . . .

2 - Phần Công suất: có thể xuất OPT hoặc OTL, Fix Bias, Đốt tim trực tiếp, gián tiếp, 3, 5 cực . . .

3 - Phần Nguồn ổn áp dùng Mosfet: Cái này Em đã làm vài bộ nguồn rồi nên chỉ cần lấy ra xài.

Hiện giờ Em cũng đang mông lung lắm, Mong được các Bác góp ý thêm.



Em dự định làm theo mạch này:

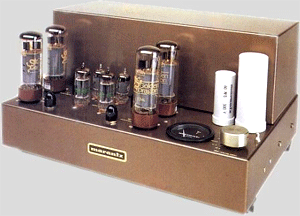

Bác ơi em thì thấy cái mạch Marant 8B nỗi tiếng lắm bác xem nếu được thì ta làm luôn cái mạch này đi bác.



Nổi tiếng nhưng mà Em . . . chửa biết mặt mũi nó ra làm sao Bác ạ, Bác post lên cho Anh Em tham khảo đi.



cái MR 8b này trước em thấy bác Rùm đã định làm rồi
có link đây :
http://www.vnav.vn/forum/viewtopic.php?t=661

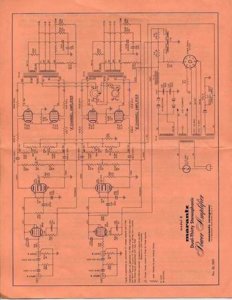

em post lại cái jp của bác rùm nè

bác Diy chiến luôn mạch này đê :lol:



Bác quyết làm luôn cái mạch này đi cho em theo với

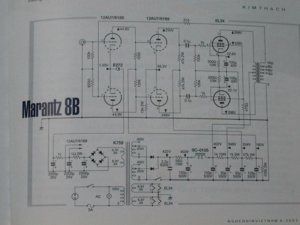

Nhưng Hình như sơ đồ của bác kim thạch khác so với mạch gốc. Em thấy ở đây cũng co bo mạch bác xem thử.
http://www.saigonhifi.com//sale/product ... 70a493d2d5



mạch đây rồi bác thử nghiên cứu xem



Em lại khoái mạch của Bác Kim Thạch hơn!

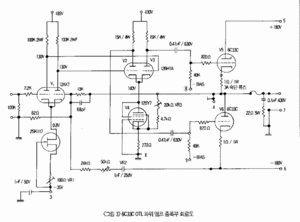

Em cũng đang làm cái mạch tương tự nè:



Nhưng tầng Output Em lại khoái dùng mấy bóng ngon bổ rẻ như: 6C33C-B hoặc 6336B, 6080WB kia ạ - Lý do là Em lỡ trữ lô đèn ni dư xài 50 năm rùi, làm sao giờ hở các Bác? Có ai đổi EL34 lấy 6C33C không?



Vụ này hay đây. Em cũng khoái mấy bóng như 6C33C nhưng chưa nghe thử thế nào cả.



Ậy cho Dzê em xin hón hớt đôi chút.

A- Mấy cái Marantz Tube khi xưa nếu có để làm đổ cổ đi bán thì tốt hơn là lấy mạch của nó để ráp lại. Lý do:

1- Không có OPT đúng như của nó.
2- Mạch nó không có gì xuất sắc! Marantz làm ra chỉ phù hợp với linh kiện phổ thông và kỹ thuật nguồn âm thời đó. Thời này cắm vô nghe thì ...
3- Nếu có đủ bóng từ pre đến EL34 của Mullard hay TFK thì hy vọng chút đỉnh có được hơi hám âm thanh nguyên thủy của nó. Đến lúc này tiền bóng sẽ mắc hơn cả mạch thì không nên ráp làm chi. Ráp bóng khác --> mod mạch còn tốt hơn

Các bác còn nhớ McIntosh MC275 kỳ thi Sumo 2007 vừa rồi em nghe nói có 1 số thí sinh cho âm thanh có thể vượt mặt. Em có nhiều dân chơi Marantz và MC275 thì chưa ai nói cái Marantz nào qua mặt cái MC275 cả ---> Xin các bác rộng đường soi xét.

B- Về cái 6C33C-B các bác kiếm được OPT PP phù hợp với nó rồi chúng ta tính tiếp ... Còn muốn ráp OTL thì hoặc là ráp mạch của lão người Ý hoặc là ... đợi ai cho mạch đã ráp thành công



Đợi mãi mới thấy Cụ Dze vào đây! Cụ cho Em vài cái Schema tham khảo với ạ.

Em cũng muốn làm một cái chất lượng chút, mạch bảo vệ đầy đủ, hồi tiếp thì dùng vô tư cho bớt méo. Em cũng thích dùng nguồn dòng hằng, gương dòng điện luôn ạ. Mọi thứ tinh túy nào có thể dùng được là OK.
Cám ơn.



-------
Katốt CCS nè, thích CCS Anot load thì bơm thêm cặp DN2540 vô... hic hồi tiếp toàn phần nè, OTL nè, luôn cả OCL nhé, ngon quá,
mời :

Cheersssssssssssss!



Em lượm được cái này :



Tube Lovers Anonymous

6C33C-B OTL Amplifier - Background and OTL Circuits--------------------------------------------------------------------------------

INTRODUCTION
The purpose of this paper is to explain the selection process and trade-offs involved in choosing the circlotron as the optimal topology for a high-power OTL amplifier. The issues involved in making this selection include circuit simplicity, balanced performance under small- and large-signal operation, and achieving low output impedance (and hence a high damping factor) without the excessive use of feedback.


BACKGROUND
For many of us, the vacuum tube remains the only acceptable electronic component for amplifying music. Endless debates and discussions on the merits of solid state versus tubes rage on, but we find that the transparency and realism offered by a device consisting of metal and vacuum just cannot be matched by silicon for sheer musical enjoyment and getting as close as possible to the original sound. Prove what you like, tell us we're imagining things, but we know it just sounds better. However, by insisting on all-tube amplification, there is classically a major penalty to be paid in the power amplifier. Tubes are simply not designed to couple directly to today's modern low impedance speakers, and a transformer must be used to match the power output to the load.
Even with finest modern materials, the output transformer remains the weakest link. At low frequencies its finite inductance steals current away from the load, and at high frequencies its stray capacitance, leakage inductance, and high-frequency copper losses combine to attenuate amplitude and introduce severe phase shifts. From the early days of hi-fi, audio designers strove to create the ideal amplifier. Much effort went into optimizing power transformer design, and even now, the seminal text books on transformers and basic magnetic analysis date back to this early time.

H.S Black discovered negative feedback for electronics in 1934, and it was immediately realized that feedback could go a long way to curing many of the problems introduced by the output transformer and other the electronic amplifying devices. In fact, it was felt that the quality of an amplifier was limited only by the amount of negative feedback that could be applied.

How much feedback that can be realistically appied is limited by how much phase shift exists from input to output of a system. Most of the feedback-limiting phase shift in a vacuum tube amplifier occurs in the output transformer; therefore, if only it could be eliminated, large amounts of negative feedback could be employed, thus creating the perfect amplifier. Today we realize that negative feedback is not the panacea it was once thought to be. In small to moderate doses it can be beneficial, but, as solid-state amplifier designers eventually discovered a generation later, too much feedback always sounds less musical than too little feedback.

As with any problem in engineering, the optimal solution is not to fix it with additional circuitry, but to remove it altogether. It seems logical then, that if an amplifier can be no better than its output transformer, eliminating the transformer altogether should result in superior performance. Hence the quest for the holy grail of tube amplifier design that has fascinated and tantalized audiophiles for over 40 years: how to design a rugged and powerful Output TransformerLess (OTL) amplifier.



PLATE IMPEDANCE AND EFFICIENCY
The biggest obstacle to building an OTL is the problem of impedance: tubes are designed to be high-voltage, low current devices, and modern speakers need high currents at relatively low voltages. The plate resistance of a tube, typically high, limits the amount of power the tube can supply for a given rail voltage.
Plate impedance alone does not completely determine the available power. It is also affected by whether your choice of circuit forces you into Class A operation (all power tubes always conduct), or whether Class AB (half the tubes may cut off during a half cycle) or Class AB2 (same as AB, but grid is driven positive, resulting in grid current flow) are also possible. However, once the class of operation is determined, available power is determined by plate resistance.

Even using several of the best tubes available, plate resistances are still considerably higher than load resistances. That's OK, you can build an OTL amplifier; it will just be relatively inefficient. For example, a single 20 Ohm plate resistance tube supplying a 4 ohm load can never be better than 16% efficient (=4/(20+4) x 100%). Reasonable power can still be provided to the 4 ohm load, but it requires a higher supply voltage than the peak output voltage, and you have to accept this and design for the dissipation of the circuit.



PLATE IMPEDANCE AND OUTPUT IMPEDANCE
While we cannot change the inherent plate characteristics of a tube, we can change the way the tube is arranged and driven in an amplifier circuit. This can have a dramatic effect upon the output impedance of the amplifier which tells us how stiff a voltage source we have made. This is also expressed by some as the damping factor of an amplifier - the lower the output impedance, the better voltage source you have achieved. The amplifier will then be better able to handle the nonlinearities, distortions, and back emf produced by the usually very complex speaker load.

The common available topologies for OTL amplifiers have some very important differences in the output impedance characteristics which must be carefully considered when selecting which topology you want to use. Although the power capabilities of the different topologies may remain unchanged when they operate in the same class (A, AB or AB2), the sonics may be substantially different due to the wide range of output impedance that can be achieved.



OUTPUT TUBE PLATE IMPEDANCE
It is important to point out that discussions of plate impedance must be done on small-signal level. In reality, the characteristics of a tube are nonlinear, and the plate impedance, derived at a single operating point from the slope of the I-V characteristics of the tube, will change drastically over a wide range. However, the results of small-signal analysis are still valid - if we come up with a topology that minimizes small-signal output impedance, it will invariably work much better in the large-signal domain also. In other words, it will probably sound better under real conditions.
For the sake of this paper, the 6C33C-B tube will be used for numerical example. At a bias voltage of 145 V, and a plate current of 400 mA, this tube has a plate resistance of 100 ohm, and a gain of 2.7.

At lower currents, the plate resistance increases, a factor to bear in mind when selecting the bias point of the tube. At higher currents, the plate resistance drops - fortunately so, otherwise even the 6C33C-B would be horribly inefficient in supplying a 4 ohm load, and a high-power OTL amplifier would not be practical. At a plate voltage of 70 V, and 1 A current, the resistance of this tube drops to 40 ohm.

This changing plate impedance is another reason to strive to get the output impedance level as low as possible. If the output impedance is high relative to the load, and it changes substantially with current, a significant amount of odd harmonic distortion is created.



THE FIRST COMMERCIAL OTL
The first commercial OTL available was the Stephens OTL which could only power its own specially-designed 500 ohm loudspeaker. It was not a successful product. But this early example demonstrates the primary difficulty of OTL design: how to couple a low- impedance load to a high-impedance vacuum tube without using an impedance-matching transformer. With the introduction of the 6AS7G twin-power triode in 1946, this task started to appear feasible. Its plate resistance is listed at 280 ohms per section; if enough tubes could be combined in parallel, it wouldn't be too difficult to drive a typical loudspeaker load, which at that time was around 16 ohms.


CATHODE FOLLOWER OTL
To get the lowest possible output impedance for a given tube, we must use a cathode follower configuration. This gives an output impedance of Rp/(1+u) where Rp is the intrisic plate resistance, and u is the gain of the tube. Single-tube cathode follower OTLs can and have been built, although they are very limited in output power, and the problem of dc current in the load must be dealt with.




Fig. 1: Cathode Follower OTL

In order to prevent dc current from flowing through the speaker load of this configuration, the speaker can be paralleled with a large inductor which will shunt the dc bias current. This is still an OTL - there is no transformer between the power tube and the load, and none of the detrimental effects of the transfer function from input to output of a transformer coupled load. The most important benefits of OTLs are eliminating the transformer wire, and connecting the speaker directly to the power tube with no other elements in series. However, the low-frequency loading effect of the inductor will detract from the bass performance of this configuration.

This amplifier must, of course, operate in Class A regime only. Since we are concerned here with much higher output power designs, this topology will not be considered further.



COMMON CATHODE OTL
An OTL amplifier can also be connected with the output tube having its cathode grounded. In this common-cathode configuration, the output impedance of the amplifier is much higher, given by Rp, the plate resistance alone. The gain characteristics of this configuration are, of course, different from the cathode follower, and it is preferred by many single-ended purists.




Fig. 2: Common Cathode OTL

As with the cathode follower OTL, the problem of dc current in the load can be mitigated by an inductor in parallel with the load. Also, it must be operated Class A, so it is of little real interest in designing a high power OTL



PUSH-PULL CATHODE FOLLOWER
In 1951 Fletcher and Cooke demonstrated a balanced push-pull cathode follower output stage using eight 6AS7G's that generated 6.32W into 16 ohms. This approach had two distinct disadvantages: its operation was limited to class A, hence the low-power, and its' output impedance was rather high at 2Rp/(1+u).




Fig. 3: Push-Pull Cathode Follower OTL

Using two tubes in parallel in the cathode follower configuration of the previous section would give Rp(2+2u), the lowest achievable open loop output impedance using a pair of tubes. The push-pull cathode follower output impedance is four times the theoretical minimum because the two cathode followers are in series, not in parallel.

If four 6C33C-B tubes were used in this particular configuration, biased at 145 V and 400 mA each, the open-loop (i.e. before any feedback is considered) output impedance would be 27 Ohms.



THE SINGLE-ENDED PUSH-PULL STAGE
Also in 1951, Peterson and Sinclair proposed what was to become the standard OTL output topology, the Single-Ended Push-Pull, or SEPP. The output circuit is simple, well-suited for class AB or AB2 operation, allowing more output power, but is has one outstanding disadvantage: it is inherently unbalanced.




Fig. 4: Single-Ended Push-Pull OTL

In the SEPP output stage the load appears in the cathode circuit of the upper tube and in the plate circuit of the lower tube. If a conventional push-pull ground-referenced driver stage is employed, the upper tubes behave as cathode-followers while the lower tubes act as common-cathode amplifiers.

This creates an imbalance of gain and output impedance between the upper and lower stages, unacceptable in good amplifier design. If true push-pull operation is to be achieved, the upper and lower tubes must be driven with equal but out-of-phase signals, but the presence of the load in the input circuit of the upper tubes makes this difficult to achieve in practice.

In a conventional push-pull amplifier using solid state devices, this problem of balance is overcome by using a P-channel device. Since we only have single-sex electron tubes, and positron tubes do not exist (except theoretically, and perhaps amongst audiophiles of the future on the Starship Enterprise), the SEPP cannot be driven directly, and it must always be considered in conjunction with a suitable drive scheme.



FUTTERMAN'S IDEA
In 1954, a self-taught New Yorker by the name of Julius Futterman published the most famous solution to the problem of a balanced drive for the SEPP. He proposed that the cathode resistor of a split-load phase inverter be returned to ground through the load, rather than to ground, as was the normal practice.




Fig. 5: Futterman OTL

This arrangement results in equal but opposite drive signals being applied between the grid and plate of both sets of tubes. He went on to claim that when so driven, the output tubes are operating as cathode followers. Unfortunately, this is not correct, and Futterman's driver design did not achieve cathode follower operation. This is because the 100% positive feedback introduced by standing the phase splitter on the output voltage effectively canceled the 100% negative feedback from the load that produces the cathode follower effect in the first place.

In other words, Futterman succeeded in converting the upper tube into a common-cathode amplifier, thus matching the behavior of the lower tube, and in so doing lost the cathode-follower impedance advantage! Instead of getting the desired theoretical output impedance of two parallel cathode followers, Rp/(2+2u), the Futterman OTL has the output impedance of two parallel common cathode amplifier tubes, Rp/2.

Futterman's solution to provide balanced drives to the SEPP is best known in the US. In Japan, OTL designers mostly used a cathode-coupled phase inverter driver first proposed by Hiroshi Ameniya in 1955. While this driver provided lower drive impedance and twice the signal swing of the split-load phase inverter, it too resulted in the output tubes behaving as common-cathode amplifiers with their attendant high source impedance of Rp/2.

It is important to note that the Futterman and other schemes proposed for the SEPP drive use feedback to achieve the balanced signals. But even with a high gain tube driving the output stage, the output impedance is relatively high, so the feedback only serves to balance the drives. In this regard, the gain of the driver tube is not fully utilized to achieve full benefits.

If four 6C33C-B tubes were used in the Futterman OTL, biased at 145 V and 400 mA each, the open-loop output impedance would be 25 Ohms (coincidentally, about the same as the Push-Pull Cathode Follower).

The Futterman circuit, and other solutions to driving the SEPP, allow for Class AB operation. Care must be taken if pushing into Class AB2 since the driver circuits are not balanced perfectly, and grid current will introduce assymetry between the top and bottom tubes, and resulting distortion.



A VARIATION ON THE FUTTERMAN
The Futterman is a very clever solution to the problem, but it has the disadvantage of making both tubes behave like common-cathode amplifiers, with their inherent high output impedance. There is a variation of this circuit which appears solves this problem. If the drives to the two tubes are interchanged, the circuit now behaves as a true pair of voltage followers, and the output impedance is dropped down to the theoretical minimum of Rp/(2+2u).




Fig. 6: Variation of Futterman OTL

If four 6C33C-B tubes were used in this circuit topology, the open-loop output impedance would be about 6.8 Ohms, 4 times lower than the original Futterman!

Of course, the lower output impedance does NOT mean that the variation on the Futterman can provide four times as much power. The power handling capabilities of both circuits remain the same, since it is the tube plate characteristics that determine power, as discussed earlier. The circuits will need different drive requirements to get there, but they can both run at the same power level.

Also, this low output impedance could only be achieved with a high gain tube. If pure triode operation were desired for the amplifier, and a realistic gain tube were used, the output impedance would be closer to 3 times lower than the original Futterman circuit.



THE CIRCLOTRON
Instead of concentrating on how best to unbalance the drive signals to compensate for the inherent unbalance in the output stage, a simple modification can be made to the output stage that eliminates the unbalance altogether. If the load and the two power supplies are allowed to float with respect to ground, and if the position of the lower supply and output tube are interchanged, the inherent unbalance of the SEPP is completely eliminated! This arrangement was first used in the Electro-Voice Circlotron of 1955, but was never applied in a commercial OTL until Atma-Sphere Music Systems came out with their MA-1 in the late 1980's.




Fig. 7: Circlotron OTL

With the Circlotron arrangement each output tube now behaves in an identical manner. Half the signal across the load appears in the cathode circuit of each tube resulting in partial cathode-follower operation. While the output impedance of this circuit is somewhat higher than the best optimal cathode follower achieved with the Futterman Variation, Rp/(2+u) versus Rp/(2+2u), it is still considerably better than the Rp/2 with identical tubes in a conventional Futterman. Best of all, a conventional push-pull driver stage will give achieve perfect balance with the circlotron, without resorting to circuit tricks, and no feedback around a high-gain tube is used in the driver stage.

If four 6C33C-B tubes were used in the circlotron topology, the open-loop output impedance would be about 10.6 Ohms. Again, not quite as good as what can be achieved with the Variation on the Futterman, but usable.

There are several other advantages to the Circlotron. Both sets of cathodes are at ground potential and can therefore be biased from a common negative voltage. With the SEPP, two bias voltages are required, one ground referenced and the other referenced to the negative rail.

Also, because of the asymmetrical arrangement of the output tubes with respect to the rail voltages, any ripple, power line or signal-induced transient voltages are fed directly into the grid circuit of the lower tubes, via the cathode, where it gets amplified along with the input signal. The upper tubes are immune from this as the rail voltage looks into the plates and therefore does not modulate the grid-to-cathode voltage. The result is a significant hum component at idle and signal-dependent DC offset at higher signal levels. The only way to prevent this from happening is to provide for electronic regulation of both power supply rails, although hum can be reduced significantly with high negative feedback.

With the Circlotron arrangement, ripple and noise on the rail supplies do not affect grid bias. Any modulation of the rails affects only the tubes' plate voltage. Ripple and power line induced transients are automatically canceled in the load, since the load only responds to differential inputs, and these disturbances are common-mode. This is not true for the Futterman circuits.

Given the benefits of the Circlotron: low source impedance, balanced operation and high common-mode rejection, it is possible to dispense with negative feedback altogether. The Atma-Sphere MA-1 is one product that does this. However, despite using 12 6AS7G's in a Circlotron output configuration, however, the damping factor is still too low for good compatibility with many of the lower impedance speakers available. Realizing this, Atma-Sphere offers a tapped auto-transformer to match the 11 ohm output impedance of the MA-1 to a one, two, three or four ohm load.

For many tube users, the concept of adding a transformer to the OTL topology defeats the whole purpose of the exercise - Sorry folks, if it needs a transformer to work properly, it ain't an OTL! It may still sound very good, and the auto-transformer design may be an improvement over other approaches, but it's not the holy grail. (Note: it may also be a lot more reliable than a pure OTL - an important consideration for anyone making these amplifiers for a living.)



CIRCLOTRON WITH FEEDBACK
Perhaps a better way to achieve a low output impedance is to add some overall voltage feedback. Because of the two balanced outputs of the Circlotron, two feedback paths must be used, as in any balanced design. Since the open-loop output impedance is already low in the circlotron arrangement, not much feedback is needed to get the job done. When operating into a 4 ohm load, only 10 dB of feedback is needed to give an output impedance of less than 1 ohm.
Adding some feedback to the circlotron has the added advantage of correcting for the distortion created in the output stage under large signal excursions. It also permits low-distortion Class AB2 operation of the output tubes. If the driver impedance is kept low and can source sufficient current, it is possible to get almost twice the power that can be achieved with class AB1 operation. But even with low driver impedance, high open-loop distortion is the result when positive grid current begins to flow. If left uncorrected it appears as if the output waveform is clipping. By applying corrective feedback the driving voltage is automatically increased to compensate for this effect, and the full potential of the output tubes can be realized.



CHOICE OF OUTPUT TUBES
The best output tubes for OTL's were all originally developed for service as series pass devices in voltage regulators. These include the 6AS7G, 6080, 6082, 6336/A/B, 7236 and 7241. All these tubes are triodes. This may come as a surprise to some who are only familiar with Futterman-based designs, since these almost exclusively rely on pentodes in the output stage. While Julius Futterman's original OTL design used eight 12B4 miniature triodes, he soon switched to pentodes. This is because with a typical high-impedance ac-coupled driver, incapable of driving the output tube grids positive, the triode cannot generate as much output power as a pentode. But pentodes are inferior in most other respects to triodes. (Anyone interested in an excellent discussion of why triodes are superior to pentodes for OTL service is urged to read Clive P. Locke's "60W OTL/OCL Triode Power Amplifier" in Glass Audio Vol.4 No.4 1992.)
Until recently the best power triode for OTL's was the 6336A. Very popular in Japan and France, it was even mentioned favorably by Futterman in his famous 1954 paper in the JAES. Bothered by the high grid emission of the 6AS7G, as well as by its low mu of 2, he remarks that the then new Chatham 6336, with its higher mu of 2.7, and its 100 ohm plate resistance (with both sections in parallel) performed well in his design.

The 6336A was exceeded only by the Sylvania 7241 triple-triode in low plate resistance. Rated as having a plate resistance of 67 ohms at 550mA, the 7241 never caught on overseas because it was expensive and hard to find. Another tube with limited availability was the EC33C. Made in the Soviet Union especially for the Japanese market (according to Jean Hiraga in "Les amplificateurs O.T.L.") it was presumably a forerunner of the by now famous Sovtek 6C33C-B.

Previously only available for Soviet military use, the 6C33C-B power triode is now readily obtainable in the West, ever since the fall of the Iron Curtain. Very similar in performance to the 6336A but far cheaper, this tube is built like a tank with its thick glass and internal bracing to reduce microphonics. It has quickly become the tube of choice for OTL designers around the world.



THE COVI MARK II CIRCLOTRON OTL
The final topology selected was the circlotron, due to its relatively low output impedance, perfectly balanced operation, circuit simplicity, and low distortion with large-signal and Class AB2 operation. In designing this Covi Mark II circuit, the following modifications were made to the standard circlotron OTL:
The output tubes were driven with low source impedance, allowing significant positive grid current and high power output into low impedances. Many published circuits, including the Atma-Sphere, have too high drive impedance to operate here. (Probably not a bad idea for reliability reasons!)

A balanced input phase splitter, implemented with a solid-state current source in the tail of the first tube (yes, solid state is good for some things, and they are inherently good at keeping a constant current).

Balanced feedback from the output to the input phase splitter was used to produce an output impedance of about 1 ohm with only 10 dB of feedback with a 4 ohm load.

Separate filament supplies for each half of the output bridge and for the driver tubes.
As used in the Covi Mark II Circlotron OTL, four 6C33C-B tubes generate over 100W into 4 ohms and over 125W into 8 ohms running class AB2 with a plate voltage of 145V. At the sine wave peaks, that's a real 200 W instantaneous, into 4 ohms, which means each 6C33C-B is delivering 3.75 A! Output power can be increased even further (with a corresponding reduction in reliability) with higher plate voltages. For some comments on how reliable this circuit and these tubes are, go to 6C33C-B OTL amplifier reliability.



Tube Lovers Anonymous

The COVI Mark II 100 W OTL Amplifier
--------------------------------------------------------------------------------



The Covi Mark II amplifier is designed for peak performance, not safety. Under peak conditions, the amplifiers will provide 100 W of power, which corresponds to a 200 W peak with a sinusoidal output, into a 4 Ohm load. That's 7 A per pair of tubes, or 3.5 A each. This is not a natural act for a vacuum tube, and the 6922 drivers must provide positive grid voltage and significant grid current to achieve this.

This drive scheme runs the output tubes to the edge of their envelope. In order to make the amplifiers acceptably rugged, the following precautions must be taken:

The output tubes must be in closely matched pairs, both externally (tube to tube), and internally (one internal triode to the other). Expect about a 30-40% fallout in testing new tubes from the factory.

Steady-state bias must be kept relatively low, in this design at 250 mA per tube.

The 6C33C-B will go through an initial burn-in period where the triode characteristics may change significantly. The matching must be checked periodically over the first 100 hours of use. After this, most of them seem to stabilize.

A servo circuit is NOT recommended, this only controls the dc bias, not the dynamic sharing, and may give a false sense of security.

If you are into a lot of rock and roll, with heavy bass lines, forget about these OTLs unless you have very efficient speakers. You can't push 100 W continuous for extended periods of time.

Think about protection - even with the best tube matching, and conservative use, the output tubes will fail occasionally. It's up to you to fuse the output as appropriate to your speakers.

Think about safety - when the output tubes fail, there may be 145 V on the output for a while. The output transformer in most tube amps protects you from this voltage.

With these points in mind, the OTL output tubes will last a long time without failure (some tubes have gone a couple of years). Failures have occurred in the present systems built (8 amplifiers), but they have always been benign, with the output tube usually fusing open. However, they are all driving Magnepan IIIa speakers which use heavy gauge wire on the panels, and have a small cap in series with the tweeter. The ribbon connector in the output tubes will fuse open long before the speaker wire on the panels.



cái vụ này hay nè. Em định ráp 807 nhưng để xem các bác lamg trước có gì em đu theo. Cái vụ OTL này em nghe nói khó kiếm đèn lắm nhưng nếu khoái thì em sẽ đu theo bác luôn. mấy cái OPT rắc rối quá!



Cái này là cái ác nhất !!! Gần như là mấu chốt của vấn đề!

Cái này không ráp không sao

Cái này phải kiếm loa và nghe âm lượng cho phù hợp nhưng khả thi!

Tốt nhất là tìm cách nào đừng để cho tube chết!

---> Tóm lại đây là những nan giải của 6C33C-B OTL xuất thẳng tuy nhiên liều cứ chơi

Em tương lai gần sẽ ĐU theo 6C33C-B với mạch tự thiết kế để thỏa mãn thú vui tính



Bác Dztronic có mạch 6C33C-B nào hay post cho anh em với



Cái này đang còn trong thời gian thiết kế chưa xong ạ.
Các bác cần gấp thì xuất tụ cho khỏe đỡ bay loa và giải quyết được 1 số vấn đề kỹ thuật quan trọng khác



Ngày xưa Em thiết kế cái máy hàn có dùng cảm biến Hall, Bây giờ dùng nó làm mạch bảo vệ loa cho OTL có được không Cụ Dze nhỉ ?



1- Bác là sư phụ của bán dẫn lẫn PCB tại sao không ráp mạch regulator cho tube OTL ---> bảo vệ bằng nguồn Regulator.
2- Hơn nữa Regulator cho Tube OTL ---> đỉnh cao của Tube OTL ---> hứa hẹn là winner Summo 2008 ???

Từ 1 & 2 ---> đỡ rách việc



Vậy là Em bắt tay làm luôn đây!

Em không biết tube thường chết do những nguyên nhân chính nào để tránh cho hiệi quả?



Vẫn chưa bắt đầu thực hiện dự án hả bác,

@DIY-Lover: Bác ơi, theo em cứ chọn loại PP xuất âm bằng OPT cho nó lành chứ chơi OTL em thấy hơi ớn vì theo như phân tích của các bác ở topic "RÁP OTL dùng bóng 6C33C" thì nó yêu cầu kỹ thuật cao quá và mỗi lần nghe thì mỗi lần lo lắng.



Lo lắng làm tăng cảm giác mừ - phải bỏ xiền ra mua cảm giác đó
