PC fanless mini QOTOM 3865U

• Buy now for 3.000.000 VND
• Gửi tin nhắn tới người đăng bài

Tên mặt hàngC fanless mini QOTOM 3865U
Tình trạng, mô tả:đã qua sử dụng còn đẹp hoạt động bình thường
Giá bán:3.000.000đ
Khu vực:Hà Nội
Điện thoại:0566179179
Giao hàng:TQ

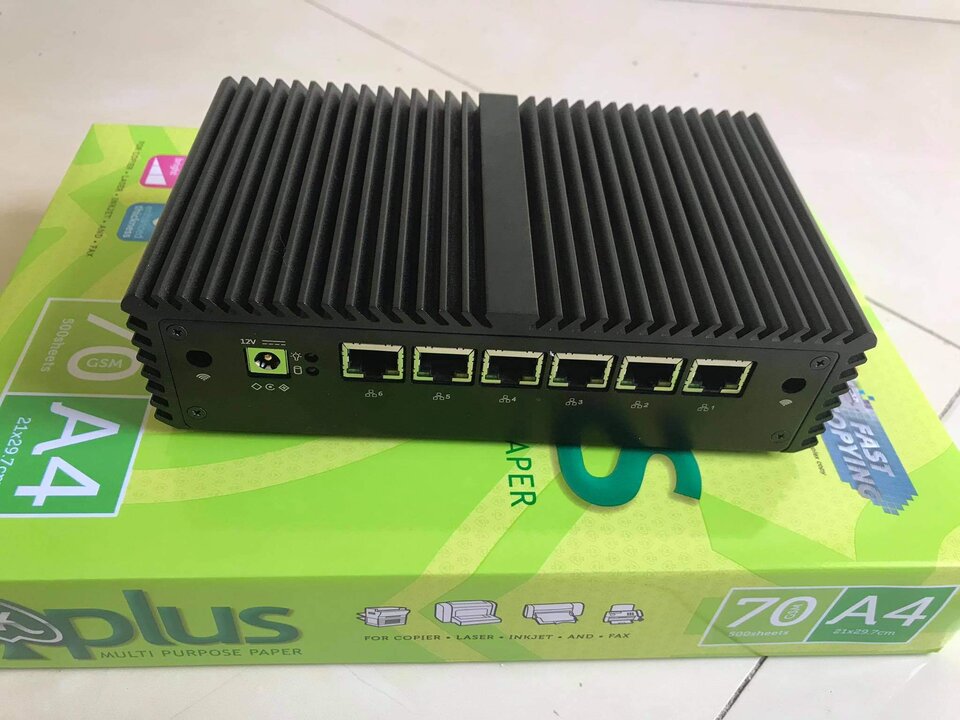

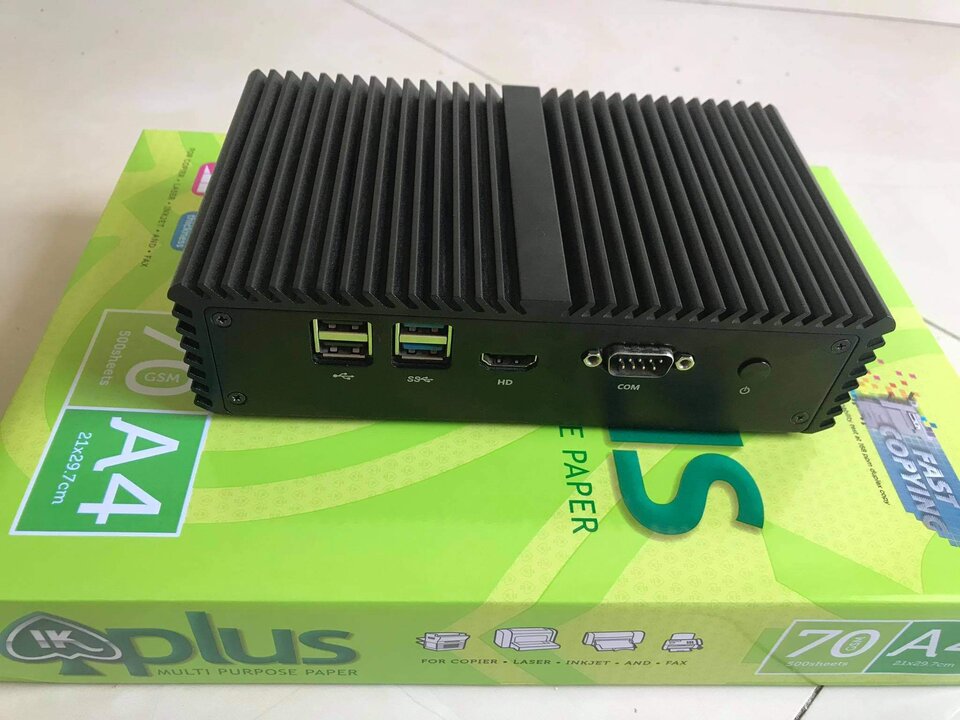

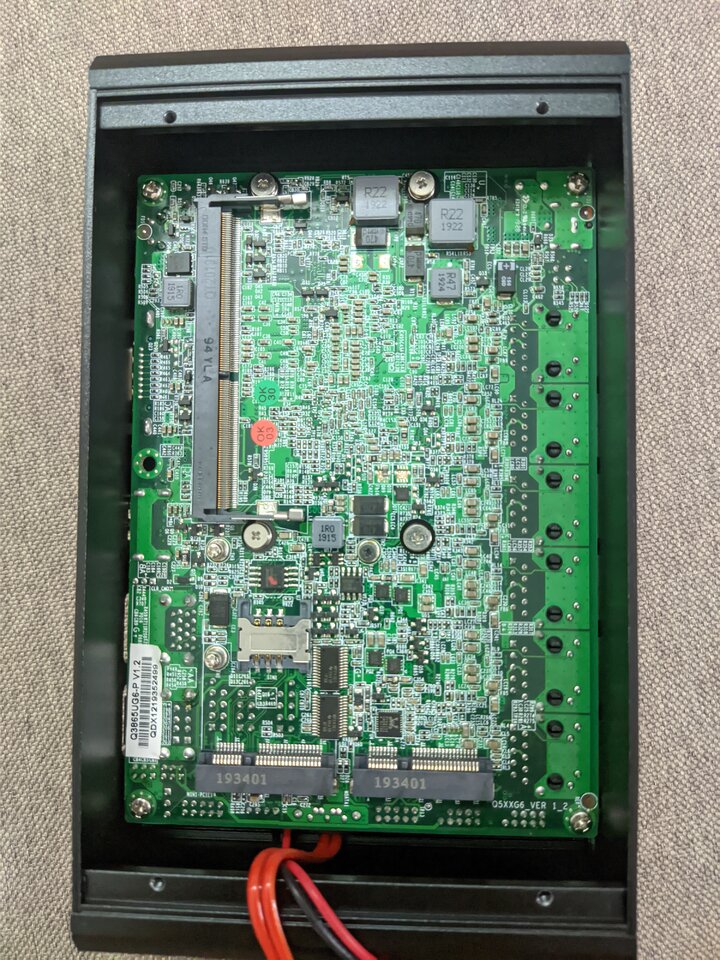

Ảnh chụp thực tế

Thông tin thêm:Máy không có ram, wifi ( mua về tự lắp theo nhu cầu của từng mục đích sd ) có ssd 120GB. ai cần thêm hình ảnh ad zalo 0566179179 -0777838689 mình gửi thêm hình ảnh

Cấu hình máy
Structural standard Industrial motherboard
148 x 104mm
CPU Onboard Intel Celeron processor 3865U 1.8GHz dual core, 2M cache, 15W
chipset CPU integration
display Integrated Intel HD Graphics HD610
1 x HDMI
The internet 6 x Intel I211-AT NIC chip, PCI-E bus Gigabit NIC
1 x MiniPCIE, default half-height mode supports extended WIFI module, optional full-height mode supports extended 3G/4G module
Audio no
storage 1 x mSATA interface
1x SATA3.0 interface (6Gb/s)
LVDS not support
eDP not support
Watchdog stand by
Heat dissipation method Fan, active cooling
Front interface
switch 1 x power switch
Serial port 1 x RS-232 (COM1)
Display interface 1 x HDMI interface
USB 2 x USB 3.0, 4 x USB 2.0
Back interface
Power interface DC 12V3A, outer diameter 5.5mm, inner diameter 2.5mm
Power Indicator 1 x power indicator, 1 x hard drive indicator
Network Interface 6 x Intel I211-AT network interface
Internal interface
Memory slot Support 1 DDR4 notebook memory, up to 16GB, 2133MHz/2400MHz
m-SATA Default full height specification solid state drive interface
SATA interface SATA 3.0 standard socket, Core series optional support 2 groups
SATA power supply 2.0mm pitch socket
Mini-PCIe Default half-height specification, support WIFI module / Bluetooth module (optional full height specification, support 3G/4G module)
SIM card holder Standard SIM card holder
Fan socket 1 x CPU fan power outlet
Call to boot 2.54mm pitch pin header, switch through jumper cap or BIOS setup
LVDS not support
eDP not support
GPIO 2.0mm pitch pin
Serial expansion pin 1 set, 2.0mm pitch pin (COM1/COM2 optional 485 mode, 9th pin optional 5V or 12V, need to be set at the factory)
VGA expansion pin 2.0mm pitch pin
Power input pin Default without, optional
USB extension pin 2.54mm pitch pin header for 4 USB 2.0 extensions
Audio extension pin no
Panel extension pin 2.0mm pitch pin header, (extended power indicator, hard disk indicator, reset button, power switch)
operating system
operating system Support for Windows 7, Windows 8, Windows 10, Linux
working environment
Operating temperature 0°C~50°C
Storage temperature -20 ° C ~ 80 ° C
environment humidity 10%~90% without condensation
