Các Bác giúp ít thông số về em Sansui AU-D607 như công xuất, trở kháng ra loa, đánh với loa nào thì hợp hả các bác, nghe classic, rock, không lời nhé
Search trên nét nhiều lắm bác à. Ăn trộm của bác Liêm cho bác mấy con Sansui khác để bác so sánh, rồi thích quá mất thêm 1 cơ số tiền đi nâng cấp này : SANSUI AU-α 607XR \ 89,800 (1994 sale) Effective output (10Hz~20kHz and both ch simultaneous operation) 105W+105W (6Ω) 90W+90W (8Ω) All the harmonic distortion factors (at the time of effective output) 0.003% or less (8Ω) Cross modulation distortion factor 0.003% or less (8Ω) Damping factor 150 (8Ω) Frequency characteristic (1W) DC~300kHz +0 -3dB Input sensitivity/impedance (1kHz) 1V/5kΩ SN ratio (A network) Above 120dB Dynamic power 280W (2Ω) 220W (4Ω) 155W (6Ω) TIM strain (SAWTOOTH) Below measurement limiting value Through late 180V/μsec Rise time 0.6μsec < Pre-amp section > Input sensitivity/impedance (1kHz) Phono MM: 2.5mV/47kΩ Phono MC: 300μV/100Ω CD, Tuner, Line and Tape/DAT1, 2: 150mV/20kΩ Phono maximum permissible input MM (THD 0.01%): 210mV MC (THD 0.1%): 21mV Frequency characteristic (1W) Phono MM: 20Hz~20kHz ±0.2dB CD, Tuner, Line and Tape/DAT1, 2: DC~200kHz +0 -3dB SN ratio (A network) Phono MM: Above 88dB Phono MC: Above 70dB CD, TUner, Line and Tape/DAT1, 2: Above 110dB Tone control Bass maximum change quantity: ±6dB (50Hz) Treble maximum change quantity: ±6dB (15kHz) Sub sonic filter 16Hz (- 3dB), 6dB/oct Loudness +6dB (50Hz) +4dB (10kHz) < Synthesis > Rated electric power consumption 250W External size Width 430× height 162× depth 452mm Weight 18.0kg SANSUI AU-V7000 \ 99,800 (1990 June sale) Utility installed capacity (EIAJ and 6Ω) Front: 100W+100W Center: 100W Rear: 50W+50W Frequency characteristic Phono MM: 20Hz~20kHz and ±0.3dB Line: 10Hz~100kHz, +0 -3dB SN ratio Phono MM: Above 72dB Line: Above 90dB Tone control Bass maximum change quantity: ±10dB (50Hz) Mid maximum change quantity: ±6dB (1kHz) Treble maximum change quantity: ±10dB (15kHz) Input sensitivity/impedance (1kHz) Phono MM: 2.5mV/47kΩ Line: 150mV/47kΩ Phono maximum permissible amount MM (THD 0.1%): 140mv < Video section > Frequency characteristic 5Hz~10MHz, +0 -3dB SN ratio Above 60dB < Synthesis > Rated electric power consumption 245W External size Width 466× height 163× depth 441mm Weight 16.2kg SANSUI AU- alpha 607 MOS Premium Limited sale item \138,000 (1991 year sale) Effective output (10Hz - 20kHz and both channel simultaneous operation) 55w + 55w (6 Omega) 45w + 45w (8 Omega) Total height harmonic wave distortion factor (at the time of effective output) 0.008% or less (8 Omega) Cross modulation distortion factor 0.008% or less (8 Omega) Damping factor 150 (8 Omega) Frequency characteristic (1w) DC - 300kHz +0dB and -3dB Input sensitivity / input impedance (1kHz) 1v/5k Omega SN ratio (A network) Above Dynamic power 70W (6 Omega) 85w (4 Omega) 90W (2 Omega) TIM strain (SAWTOOTH) Below measurement limiting value Through late 180V/ mu sec Rise time 0.6 Mu Sec < Pre-amp section > Input sensitivity / input impedance (1kHz) Phono mm: 2.5mV/47k Omega Phono MC: 300 mu V/100 Omega CD, Tuner, Line and Tape/DAT-1, 2 and 3: 150mV/20k Omega Phono maximum permissible input Mm (THD 0.01%): 210mV MC (THD 0.1%): 21mV Frequency characteristic (1w) Phono mm: 20Hz - 20kHz }0.2dB CD, Tuner, Line and Tape/DAT-1, 2 and 3: DC - 200kHz +0dB and -3dB SN ratio (A network) Phono mm: Above 88dB Phono MC: Above 70dB CD, Tuner, Line and Tape/DAT-1, 2 and 3: Above Tone control Bass maximum change quantity: }6dB (50Hz) Treble maximum change quantity: }6dB (15kHz) Sub sonic filter 1C$6hz (-3dB), 6dB/oct Loudness +4dB (50Hz), +4dB (10kHz) < Synthesis > Rated electric power consumption 160W External size Width 460~ height 159~ depth 446mm Weight 18.8kg SANSUI AU-X1111MOS VINTAGE \ 400,000 (around 1988) Effective output (10Hz~20kHz and both ch operation) 150W+150W (6Ω) 110W+110W (8Ω) Dynamic power 320W+320W (2Ω) 240W+240W (4Ω) 190W+190W (6Ω) All the harmonic distortion factors (at the time of 10Hz~20kHz and effective output) 0.008% (8Ω) Cross modulation distortion factor (60Hz: 7kHz=4: 1, SMPTE) 0.008% (8Ω) Damping factor 200 (8Ω) Frequency characteristic (1W) DC~300kHz (+0dB, - 3dB) Input sensitivity/input impedance (1kHz) 1V (5kΩ) SN ratio (A network) Above 115dB Envelope strain Below measurement limiting value TIM strain (SAWTOOTH) Below measurement limiting value Through late ±150V/μsec (8Ω) Rise time 0.5μsec Headphone output 400mW (33Ω) Load impedance 4~16Ω < Pre-amp section > Input sensitivity/input impedance (1kHz) Phono MM: 2.0mV/47kΩ Tuner, CD and Tape Play 1, 2 and 3, Line1, 2: 150mV/47kΩ Maximum permissible input Phono MM: 200mV (1kHz) Output voltage (1kHz) Tape Rec (PIN): 150mV/47kΩ Output impedance (1kHz) Tape Rec (PIN): Above 600Ω SN ratio (A network) Phono MM: Above 88dB Tuner, CD and Tape Play1, 2 and 3, Line1, 2: Above 110dB [sabusonitsuku] filter 16Hz (- 3dB and 6dB/oct) Presence (Volume -40dB) +2dB (200Hz) Audio muting -20dB < In addition > Rated electric power consumption (electric supplies control method) 350W External size Width 470× height 178× depth 486mm Weight 35.1kg SANSUI BA-1000 \ 89,800 (point in time of June of 77) Effective output 45W+45W (both ch operation, 20Hz~20kHz and 8Ω) 95W (BTL connection mono operation, 20Hz~20kHz and 16Ω) All the harmonic distortion factors 0.08% or less (at the time of rated output, 8Ω) Cross modulation distortion factor 0.03% or less (70Hz: 7kHz=4: 1 SMPTE) Output bandwidth 5Hz~30kHz (IHF and 8Ω) Frequency characteristic 5Hz~80kHz (+0 -1dB, 1W) Ham and noise Above 105dB (IHF) Input sensitivity/input impedance 700mV/50kΩ Load impedance 2ch: 4 and 8, 16Ω Mono: 8, 16Ω Damping factor 70 (8Ω) Channel separation Above 85dB (1kHz) External size Width 482× height 88× depth 338mm Weight 10kg SANSUI AU- alpha 607 MOS Limited Frequency characteristic (1w) DC - 300kHz +0dB and -3dB Effective output (10Hz - 20kHz and both channel simultaneous operation) 75w + 75w (6 Omega) 50W + 50W (8 Omega) Total height harmonic wave distortion factor (at the time of effective output) 0.008% or less (8 Omega) Cross modulation distortion factor 0.008% or less (8 Omega) Damping factor 150 (8 Omega) Input sensitivity / input impedance (1kHz) 1v/10k Omega SN ratio (A network) Above Dynamic power 100W (2 Omega) 95w (4 Omega) 75w (6 Omega) TIM strain (SAWTOOTH) Below measurement limiting value Through late 180V/ mu sec (8 Omega) Rise time 0.6 Mu Sec < Pre- section > Frequency characteristic (1w) CD, Tuner, DVD/LINE, Tape-1/MD and Tape-2: DC - 300kHz +0dB and -3dB Phono mm: 20Hz - 20kHz }0.2dB Input sensitivity / input impedance (1kHz) Phono mm: 2.5mV/47k Omega Phono MC: 300 mu /100 Omega CD, Tuner, DVD/LINE, Tape-1/MD and Tape-2: 150mV/20k Omega Phono maximum permissible input Mm (THD 0.01%): 210mV MC (THD 0.1%): 21mV SN ratio (A network) Phono mm: Above 88dB Phono MC: Above 70dB CD, Tuner, DVD/LINE, Tape-1/MD and Tape-2: Above Tone control Bass maximum change quantity: }6dB (50Hz) Treble maximum change quantity: }6dB (15kHz) Sub sonic filter 1C$6hz (-3dB), 6dB/oct Loudness +6dB (50Hz) +4dB (10kHz) < Synthesis > Rated electric power consumption 170W Signalless electric power consumption 52w External size Width 466~ height 162~ depth 452mm Weight 22.5kg SANSUI AU- alpha 607 MOS Premium Effective output (10Hz - 20kHz and both channel simultaneous operation) 55w + 55w (6 Omega) 45w + 45w (8 Omega) Total height harmonic wave distortion factor (at the time of effective output) 0.008% or less (8 Omega) Cross modulation distortion factor 0.008% or less (8 Omega) Damping factor 150 (8 Omega) Frequency characteristic (1w) DC - 300kHz +0dB and -3dB Input sensitivity / input impedance (1kHz) 1v/5k Omega SN ratio (A network) Above Dynamic power 70W (6 Omega) 85w (4 Omega) 90W (2 Omega) TIM strain (SAWTOOTH) Below measurement limiting value Through late 180V/ mu sec Rise time 0.6 Mu Sec < Pre-amp section > Input sensitivity / input impedance (1kHz) Phono mm: 2.5mV/47k Omega Phono MC: 300 mu V/100 Omega CD, Tuner, Line and Tape/DAT-1, 2 and 3: 150mV/20k Omega Phono maximum permissible input Mm (THD 0.01%): 210mV MC (THD 0.1%): 21mV Frequency characteristic (1w) Phono mm: 20Hz - 20kHz }0.2dB CD, Tuner, Line and Tape/DAT-1, 2 and 3: DC - 200kHz +0dB and -3dB SN ratio (A network) Phono mm: Above 88dB Phono MC: Above 70dB CD, Tuner, Line and Tape/DAT-1, 2 and 3: Above Tone control Bass maximum change quantity: }6dB (50Hz) Treble maximum change quantity: }6dB (15kHz) Sub sonic filter 1C$6hz (-3dB), 6dB/oct Loudness +4dB (50Hz), +4dB (10kHz) < Synthesis > Rated electric power consumption 160W External size Width 460~ height 159~ depth 446mm Weight 18.8kg
Vâng cảm ơn bác Nhưng mới nhìn thấy ngoài hàng bán em AU-D607, chưa biết nó thế nào, giá cả ra sao thì múc được, chất âm, bass tep em này thế nào ạ, các bác chỉ giáo giúp với nhé
Bác chơi loa gì? SANSUI Bác tìm mấy con đời càng về sau này thì tiếng càng hay, Bass gọn gẽ, Mid& treble khỏi phải chê! (Xem năm SX trên sợi dây dẫn điện đó, nhưng phải là dây gin mới đúng)

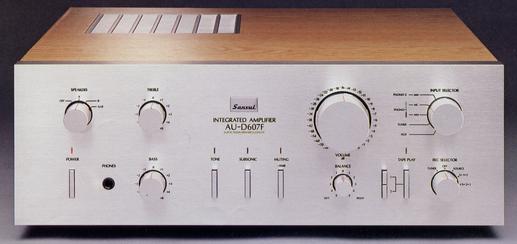

các pác nào biết cho hỏi sánui AU D607F chơi loa nào tốt, bị mất núm volum moa ở dâu để thay thế. cám ơn
